YC Dry Drum Magnetic Separator
Category: Dry Magnetic Separator  Publish Time: 2013-08-06 15:41

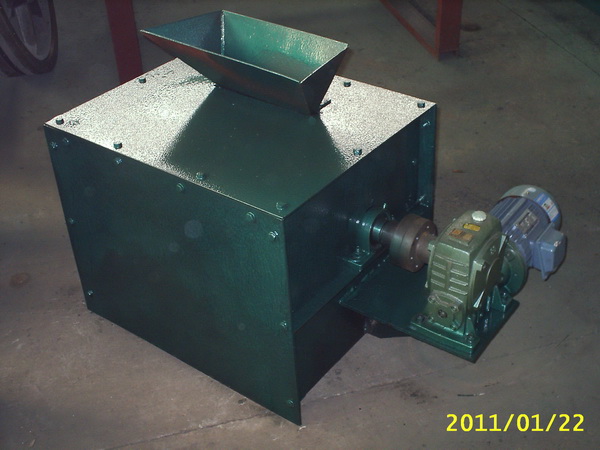

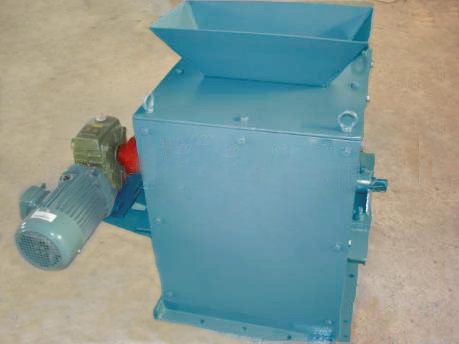

YC Dry Drum Magnetic Separator
YC dry drum magnetic separator can attract dry magentic powder from the non-magnetic materials continuously and automatically.



【YC Dry Drum Magnetic Separator】

Brief



YC dry drum magnetic separator can attract dry magentic powder from the non-magnetic materials continuously and automatically.



The unique desigh for magnetic circuit and the magnetic source is made up from the NdFeb with high performance. Featuring with powerful magnetic forece and high efficiency for tramp iron-elimination, it can be widely arranged in the lines such as grinding,fire-proofmaterial,foodstuff,feed,buildingmaterial,ceramics,raw material for glass, renewable rubber powder, PVC powder, quartz sand,and chemical industry and so on. Feeding capacity can be adjusted to meet the different granularity requirement. It is characteristic with exempt-maintenance,energy saving, cost-lower,safety and reliability.



Feature



Magnetic material

High-density Ceramic permanent magnet is standard. Rare Earth magnets are available.

Magnet design

Stationary Ceramic or Rare Earth magnetic assembly inside rotating drum shell.

Contaminant removal

Ferrous fragments, nuts, bolts, and other tramp metal from free-flowing granular material.

Method of cleaning

Continuous self-cleaning design.

General material

Stainless steel drum cover with mild steel housing. Stainless steel housing is optional.

Installing Position

YC- Dry Drum Magnetic Separator may be installed in many different places in your process.





Main Dimension and Technical Data

Model

External

Size(mm)

Drum Spec

(mm)

Magnetic Intensity(GS)

Quantity

of Roller

Productivity

(T/h)

GranularityLimite(mm)

 Power(kw)

YC-40-Ⅰ

840x460x660

300x400

≥3000

1

≤0.5

≤5

0.55

YC-50-Ⅰ

940x460x660

300x500

≥3000

1

≤0.6

≤5

0.55

YC-60-Ⅰ

1040x460x660

300x600

≥3000

1

≤1.5

≤5

0.55

YC-60-Ⅱ

1040x460x1240

300x600

first roller≥1000

second roller≥3000

2

≤2

≤5

2x1.5

YC-80-Ⅰ

1470x920x1040

500x800

≥3000

1

≤2

≤8

0.75

YC-80-Ⅱ

1710x1320x1570

500x800

first roller≥1000

second roller≥3000

2

≤2.5

≤8

2x1.5

YC-100-Ⅰ

1590x1020x1240

500x1000

≥3000

1

≤2.5

≤10

1.1

YC-100-Ⅱ

1910x1420x1770

500x1000

first roller≥1000

second roller≥3000

2

≤4

≤10

2x2.2

































Note: We can develop the products according to the customers’ demands, too.
